The lightest mobile table saw

Steven Winter  |  Apr 1, 2015

METABO TS254 PORTABLE TABLE SAW



Thanks to a completely integrated leg stand, robust wheel set and only a weight of 33kg this machine sets a new bench mark for portable table saws.

Designed primarily for site use the TS254 will also be at home in any workshop environment where space is of concern. With a powerful 2,000 watt motor for fast cuts the TS254 also has a number of features including soft start technology, overload protection, restart protection and a 3 second motor brake! Furthermore the riving knife can be lowered without needing tools and the saw blade can be automatically reset to 0 – 45 ° after undercuts thus giving short setup times.

Benefits:

  • The lightest mobile table saw - With 33.4 kg including stand, the TS 254 is up to 50% lighter when compared to other mobile table saws in its class (including stand with wheels)!
  • Integrated foldable stand - Compact and extremely stable at the same time
  • Second working height - allowing you to work near ground level

Set Up in under 30 Seconds

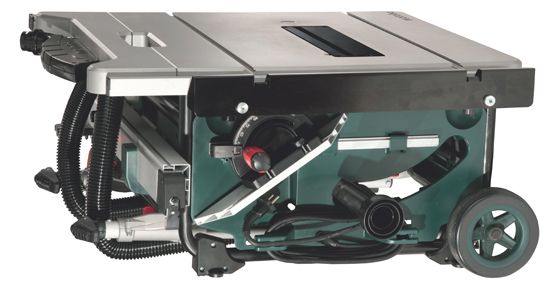

Metabo TS254 Potable Table Saw

MORE HIGHLIGHTS

For your safety:

  • Fast motor brake brings the saw blade to a standstill in just 3 seconds
  • No-volt release switch – prevents accidental startup of the machine after a power cut
  • Dual port dust extraction for low dust working

For your productivity:

  • High torque 2,200 Watt motor with electronic overload protection
  • Riving knife that can be lowered without needing tools for short setup times
  • Automatic resetting to 0 – 45 ° after undercuts

Specifications:

  • Dimensions (L x W x H): 740 x 750 x 355mm
  • Table size L x W (min/max): 670/970 x 715/995mm
  • Working height 850/355 mm
  • Maximum cutting height (90°/45°) 87/50 mm
  • Max. cutting width at parallel guide 630 mm
  • No-load speed 4.200/min
  • Max. cutting speed 56 m/s
  • Saw blade Ø 254 x 30 mm
  • Rated input power 2 kW
  • Saw blade swivel range -1,5° bis 46,5°
  • Weight including stand 33,4 kg

Supplied with:

  • Carbide circular saw blade with alternately bevel-ground tips (40 teeth),
  • stand,
  • hard rubber tyres,
  • parallel guide/ripping fence,
  • mitre guide,
  • table length extension,
  • table width extension,
  • saw blade case,
  • chip and dust extraction unit,
  • rubber cable (3 m), push stick
